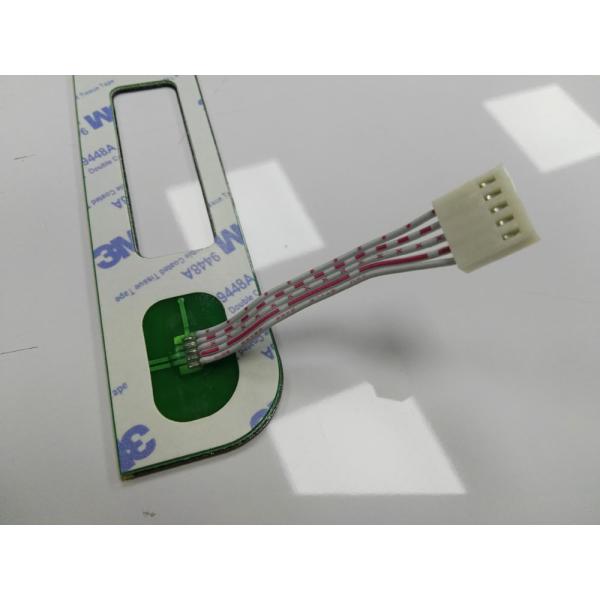

OEM Metal Dome Control Panels PCB Membrane Switch With 3M Adhesive Flexible
Quick Detail:
| Operating Temperature | -40—70(C°) | Operating Voltage | ≤50(V) |
| Rated Current | 0-30V DC | Contact resistance | 0.5-10( Ω) |
| Insulation Resistance | ≤50(Ω) | Key operation force | 15-750g |
| Dome springback time | ≤5(ms) | Substrate voltage | 1500VDC |
| Feature: | Dust-proof , Waterproof | Certificate: | SGS , Rohs |
Description & Competitive Advantage:
1. Beautiful appearance,rich and bright in color,design can be arbitrary,the products can fully reflect the individual style of the product itself and designer.
2. Panel can wash,good protection of durable color,characters,logos and other panel contents without injury.
3. Small size,light weight ,thin thickness,good tactility,abrasion resistant,installation and connection convenience.
4. Tightness is good ,moisture-proof,dust-proof,waterproof,anti-oil,anti-corrosion and erosion of harmful gases proof,acid and alkali proof,quakeproof.
5. Low cost,high lifespan,membrane switch's design and manufacture are using the keyboard as a whole way,whether on the material or mold charges,the costs are lowest,the life expectancy of different types of membrane switch is more than 100million times.
6. Easy to operate,intuitive,safe and reliable,In-house 100% functionally tested,components are guaranteed without any intermittent problem.
7. Customized specification is available and keys can make different shapes
Applications:
Products are widely used in communication, industrial control, household appliances, GPS, children's kid-learning, electronic reading machine, various game machines, Instruments and Apparatuses, attendance machine,
Electronic scale, medical equipment, electronic tools equipment, automatic sewing machine,
Embroidery Machine, Machine Maintenance equipment, computer keyboard and electronic calculators and etc.
Performance indicators:
1. Electronic characteristics:
Circuit rating: 35V (DC), 100mA, 1W
Contact resistance: 10Ω --500Ω (According the trace length and materials to comfirm)
Insulation resistance: > 100MΩ 250V DC
Contact bounce: ≤ 5ms Dielectric withstand: 250VRms (50-60Hz 1min)
Life expectancy: Flat type ≥ 5 million times, tactile type: ≥ 1 million times
2. Mechanical Properties Actuation force:
Flat type 57-284G (2-10 Oz), tactile type 170-397g (6-14 Oz)
Switch stroke: Flat type 0.1-0.5mm, tactile type 0.6-1.5mm
3. Environmental parameters:
Operating Temperature: -40 oC- +80oC, Storage temperature: -40oC - +85oC
Humidity: 40oC, 90% -95%, 240 hours
Design Service
Considering some customers aren't familiar with the technology applied in membrane switch, our company is willing to provide the switch design service for you. You just need to give us basic information of your requests such as operating conditions. We will devote ourselves to recommending the most suitable and cost-effective intergrated solution for you ,
while taking function, performance, aesthetics,
budget and time into consideration. What's more, you will become a member
of our design team, what we are designing will be In accordance with your request.
There is no doubt that our team are combining our strengths, experiences, and knowledge to serve you.
Customize Membrane Switch
FLEXKYS provides the service of customizing various membrane switch, such as intergrading components into complex, custom user-interface assemblies.We can mount
your switch panel to a rigidbacker, housing, casing, or to additional printed circuit board assemblies.
We will do what we can to help you.
we manufacture complete line of membrane switches, our experienced
Design team are ready to work with you to design membrane switches to meet
Your unique needs of your project.
